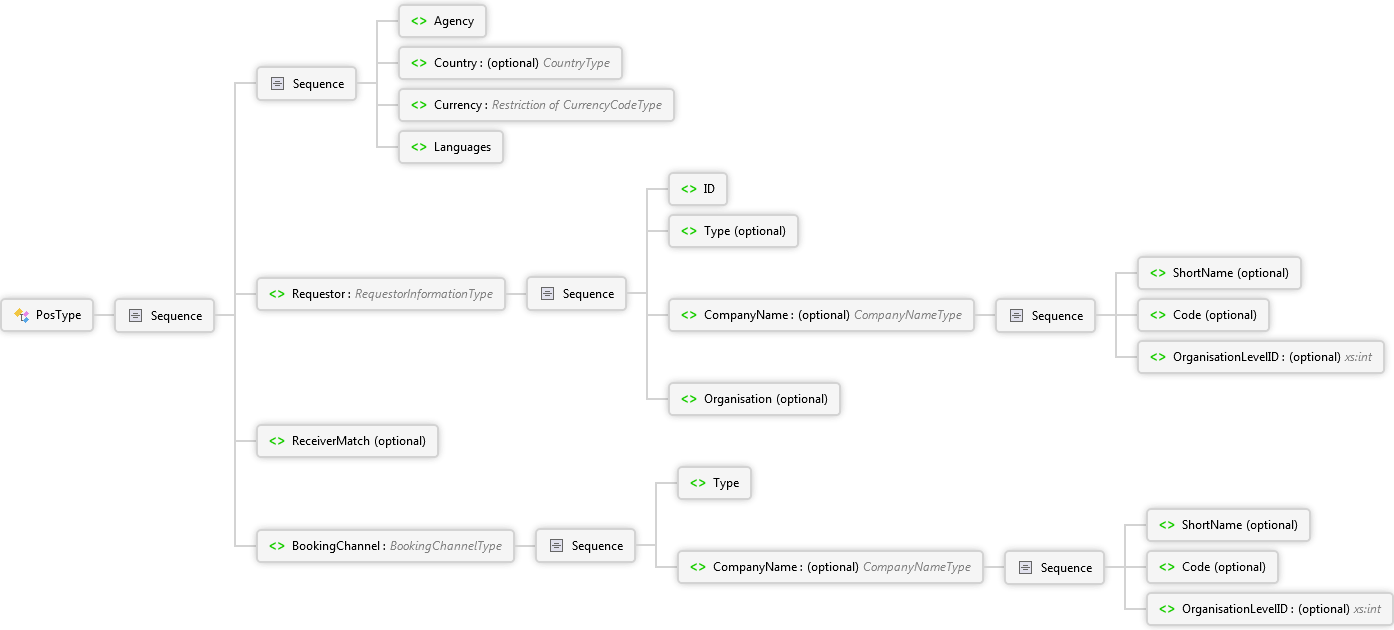

PosType Complex Type

Provides information on the originator of the query

PosType

Provides information on the originator of the query

Sequence

Agency

Identification of the executing agency

Country optional CountryType Complex Type

Sequence

Name xs:string

Name of the country

CountryCode CountryCodeType Simple Type

ISO code

Currency CurrencyCodeType Simple Type

Languages

ISO Language Code of the generated Language(s) of the originator instance. In case of a multiple language support one is defined as the primary language

Sequence

PrimaryLanguage xs:language

AdditionalLanguages 0..3 xs:language

Requestor RequestorInformationType Complex Type

Sequence

ID

ID of the requestor which must be unique within the requestors overall system

Type optional

CompanyName optional CompanyNameType Complex Type

Sequence

ShortName optional

Code optional

OrganisationLevelID optional xs:int

As the company could be part of a bigger organization, one might provide the level in the hierarchy of that organization Only 1 digit LevelIds are provided

Organisation optional

As the company could be part of a bigger organization, one might provide the hierarchial structure of that organization Thereby a hierarchy will be represented by a LevelID Only 1 digit LevelIds are provided

Sequence

Level 1..10

A level will be represented by a LevelID (1 digit) and a corresponding key (name) value pair

Sequence

LevelID xs:int

Only 1 digit LevelIds are provided

Name

Value

ReceiverMatch optional

The corresponding ID, the RequestorID is mapped with in the receivers system

Sequence

ID

BookingChannel BookingChannelType Complex Type

Sequence

Type

CompanyName optional CompanyNameType Complex Type

Sequence

ShortName optional

Code optional

OrganisationLevelID optional xs:int

As the company could be part of a bigger organization, one might provide the level in the hierarchy of that organization Only 1 digit LevelIds are provided

POS Element
POS Element

<xs:complexType name="PosType" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>Provides information on the originator of the query</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:sequence>
      <xs:element name="Agency">
        <xs:annotation>
          <xs:documentation>Identification of the executing agency</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="Country" type="CountryType" minOccurs="0" maxOccurs="1" />
      <xs:element name="Currency" type="CurrencyCodeType" />
      <xs:element name="Languages">
        <xs:annotation>
          <xs:documentation>ISO Language Code of the generated Language(s) of the originator instance.
In case of a multiple language support one is defined as the primary language</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="PrimaryLanguage" type="xs:language" />
            <xs:element name="AdditionalLanguages" type="xs:language" minOccurs="0" maxOccurs="3" />
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:element name="Requestor" type="RequestorInformationType" />
    <xs:element name="ReceiverMatch" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The corresponding ID, the RequestorID is mapped with in the receivers system</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="ID" />
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="BookingChannel" type="BookingChannelType" />
  </xs:sequence>
</xs:complexType>
